Information

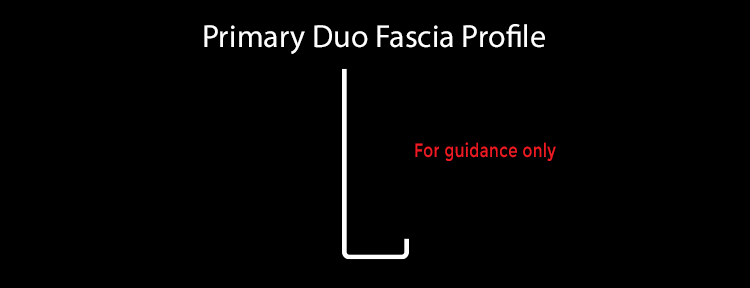

Fascia Primary Duo – Sizes
The twice bent Primary Duo fascia is available in the following maximum girths:
- 150mm
- 200mm
- 250mm
- 300mm
- 415mm
- 500mm
- 625mm
- 750mm

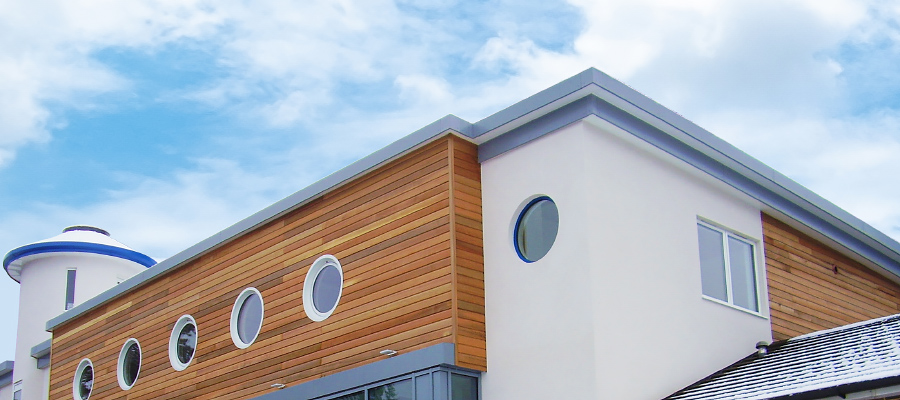

Our Primary Duo Fascia system is a simple twice bent fascia that is manufactured on an individual project by project basis. Primary duo fascia systems have many uses such as fascia covers; to clad existing fascia boards, verge, gable and bargeboard; or as flashing, trim or cladding to the building roof eaves. Our primary duo fascia can be used either with an external or concealed gutter, or just as a fascia cladding.
Aluminium fascia primary duo is a highly adaptable product and as it is project specific we can manufacture virtually any profile, shape and size for the roof line.
If the project requires a curved aluminium fascia board, radius fascia cover or radii fascia cladding, to either a true or facetted curve, our primary duo fascia system is a great solution where horizontal, vertical, and most complex curves are achievable.
This aluminium fascia primary duo integrates perfectly with Guttercrest’s external gutters or concealed internal guttering, rainwater downpipes, and our range of aluminium eaves products, coping and cappings.
Venting can be incorporated in to the aluminium fascias.
V-Ribbing to fascias gives a feature plank look like timber tongue and groove planking or weather board cladding. It also strengthens the aluminium fascia panels.
Special fabrications and architectural detailing are also available.
Please Note: Due to our ongoing product development policy, we reserve the right to alter specifications without prior notice.
The twice bent Primary Duo fascia is available in the following maximum girths:
Aluminium Primary Duo Fascia Fittings can be manufactured as standard and non-standard angles, stop ends, raking angles, apex angles, stepped angles, doglegs, junctions to bargeboards and verges.
Aluminium duo fascias can be fixed to many types of background, varying from timber carcassing to metal aluminium or galvanized steel carcassing and sub-framing. The correct carcassing design will shorten the installation time.
Bespoke, purpose-made brackets can be designed and manufactured to support the aluminium fascia cladding along with any integrated soffits and gutters.
All our aluminium primary duo fascias are available polyester powder coated in a wide array of colours and finishes including the full range of RAL colours, BS colours, Heritage textured finishes, metallic finishes, and anodised coating.
We can also source special colours and finishes to match your project requirements or we can supply our aluminium fascias in the standard mill finish.
