The design of our Aluminium Moulded Ogee Gutters, also known as No. 46 or Type 46, is inspired by 19th Century cast iron gutters and these gutters are suitable for use on both period and contemporary properties. Made to BS 9101:2017, they offer the traditional look of cast iron gutters while providing all the benefits of aluminium guttering including being lightweight, environmentally friendly, and easy to install and maintain.
For best practice, installers should ensure that any gutters they fit comply to British Standard BS 9101:2017 Steel and aluminium rainwater systems.
Our standard gutters are generally compliant with BS 9101:2017*.
The standard specifies the requirements for the design and manufacture of metal gutters on industrial, commercial and residential buildings. It reflects the range of materials and manufacturing technologies available and applies to the manufacture of steel and aluminium metal gutter systems.
This British Standard specifies the materials, tolerances, mechanical properties and surface conditions, coatings, laminated surfaces, jointing methods and fixings for rainwater systems, including fittings and accessories for assembly or support.
The British Standard is available from www.shop.bsigroup.com.
*Fitting gutter using rafter or mortar brackets may compromise compliance.
Please Note: Due to our ongoing product development policy, we reserve the right to alter specifications without prior notice.

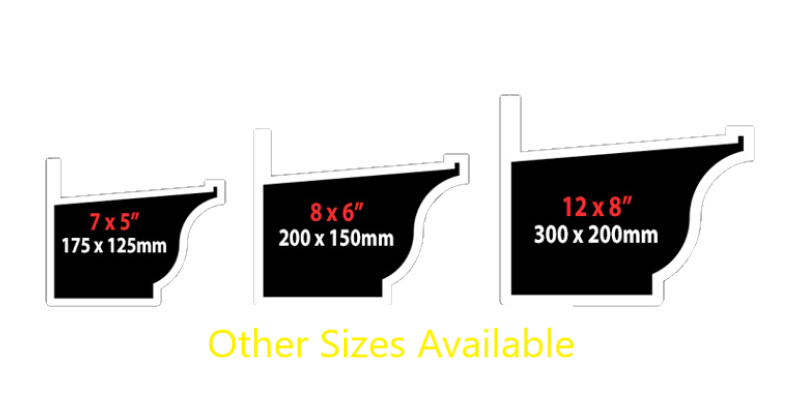

Our large moulded ogee gutters are available in three standard lengths of 3m, 1.8m / 6’ and 1.5m / 5′, and three standard profile widths:
We can manufacture almost any size large moulded ogee gutter.
We produce a comprehensive range of complementary fittings for the moulded ogee gutter system. These include stop ends, shaped stop ends, running outlets, back outlets, sleeve outlets, gutter angles, non-standard and irregular angles, raked angles, apex angles, and high capacity internal angles. Special items can be manufactured to individual requirements, please ask.

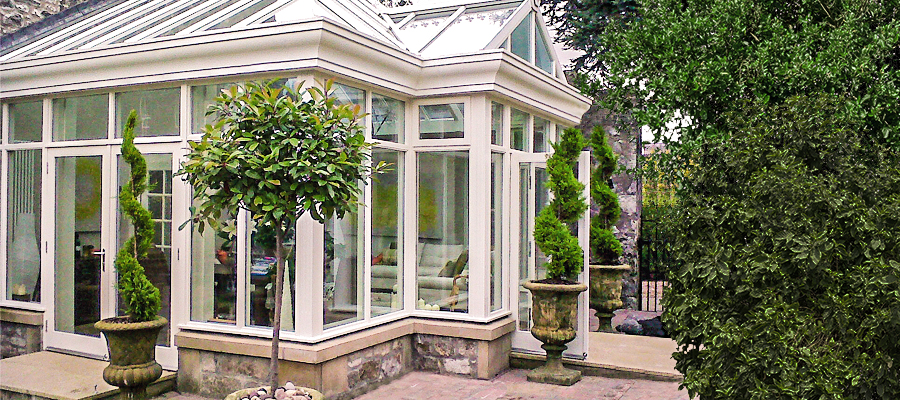

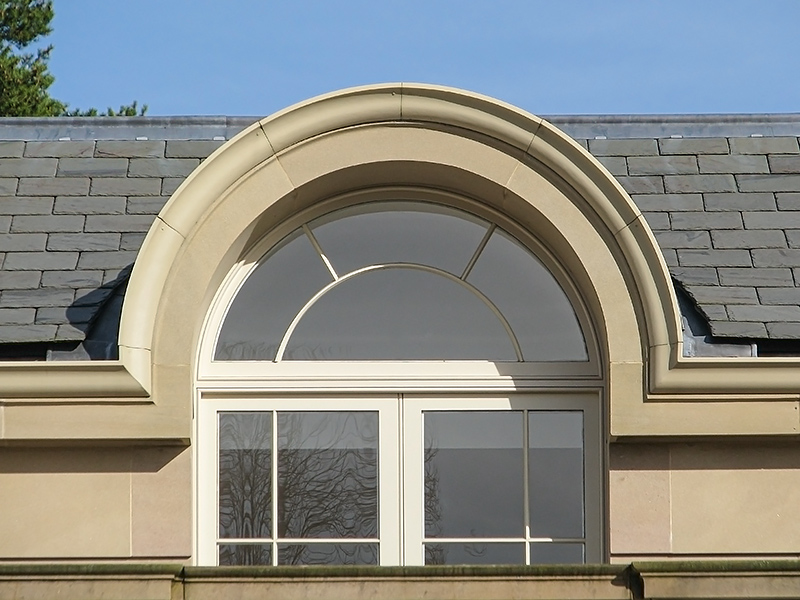

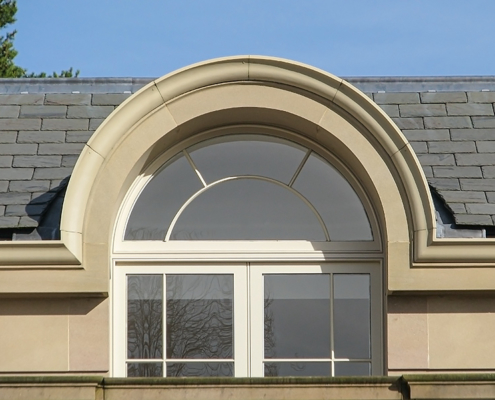

If your project requires a more complex curved, radius or radii large moulded ogee gutter – perhaps on a bay window or orangery – we can manufacture a true or facetted curve to your specification, normally in one-metre lengths.
These Traditional Moulded Ogee Gutters are normally direct back-fixed to the fascia board of the building.
Other types of gutter brackets such as fascia brackets, side or top fix rafter brackets, and mortar brackets / rise and fall brackets can be provided.
We can also manufacture special / bespoke gutter brackets, please ask.
All our aluminium moulded ogee gutters are available polyester powder coated in a wide array of colours and finishes including the full range of RAL colours, BS colours, Heritage textured finishes, metallic finishes, and anodised coating.
We can also source special colours and finishes to match your project requirements or we can supply our aluminium gutters in the standard mill finish.
Our aluminium moulded ogee gutters offer many benefits as they are easy to install, low maintenance, lightweight yet very robust, with our larger ogees having a welded internal bracket. Our gutter jointing system is proven over 25 years.
Easy, fast installation: Our moulded ogee aluminium gutters have integral welded spigots / butt straps and are double spigotted meaning less joints and less waste of gutter lengths, resulting in faster and easier installations.
Over 90% of the aluminium we use is recycled meaning we offer a sustainable rainwater system for your building project.
Please Note: Due to our ongoing product development policy, we reserve the right to alter specifications without prior notice.
